Tactical microwave filters including WR229, UHF and L-Band bandpass filters, high-power lowpass filters, duplexers, multiplexers, phase shifters and waveguide filters for demanding RF applications.
Designed for high rejection, low insertion loss and reliable performance,
with compact and rugged solutions covering frequencies from 360 MHz to 45.6 GHz.

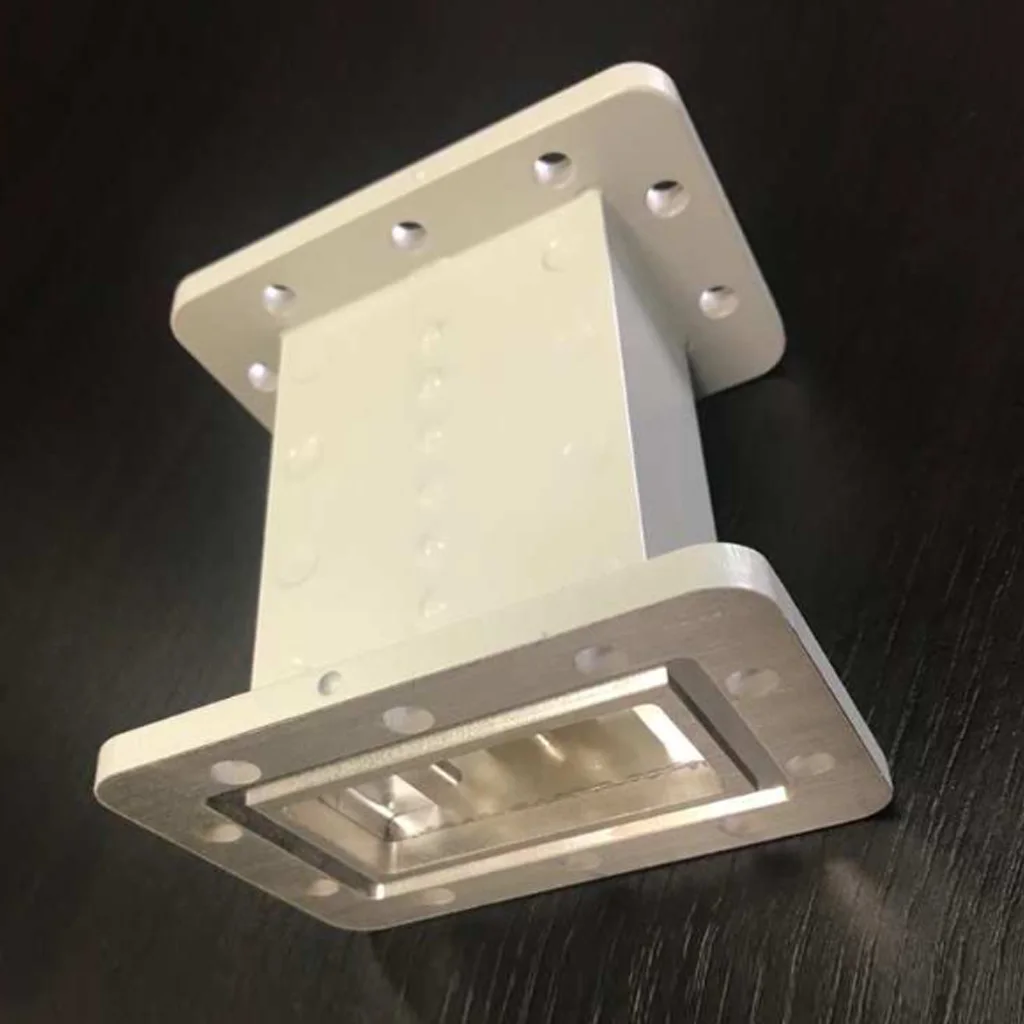

WR229 Bandpass Filter
Very Compact (Length 100 mm)
BW 3600 – 4200 MHz
WR229 Bandpass Filter
BW 3600 – 4200 MHz
Very Compact (Length 100 mm) and
Low Loss (IL ≤ 0.5 dB)
Product code: MW-F03900-FFT

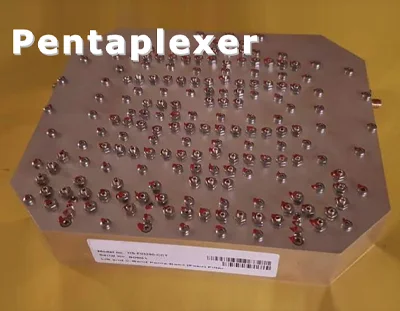

Pentaplexer
With Filters in L,S & C Bands
Compact & High Rejection
Product code: MW-F03290-CCT

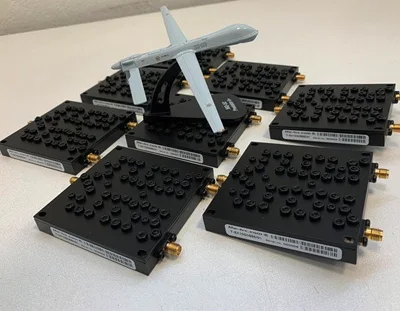

15 GHz(Ku-Band) Diplexer for UAV systems
Compact, with low loss and high isolation
Low Filter Bandwidth 14.4 – 14.83 GHz
High Filter Bandwidth 15.15 – 15.35 GHz
Product code: MW-15G-0886/01

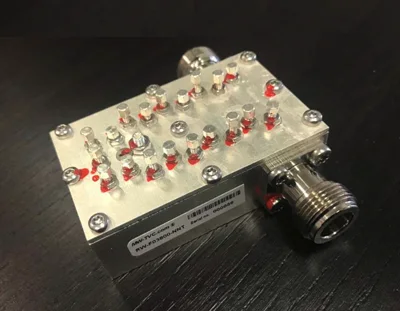

600-MHz & 800-MHz Bandwidths
BW 3400 – 4200 MHz (MW-F03800-NNT)
BW 3600 – 4200 MHz (MW-F03900-NNT)
Very Compact and Low Loss
Product code: MW-F03800-NNT • MW-F03900-NNT
Interdigital Bandpass Filter
BW 1020 – 1100 MHz
Attenuation > 45 dB up to 3rd Harmonic
Product code: MW-F01060-NNT

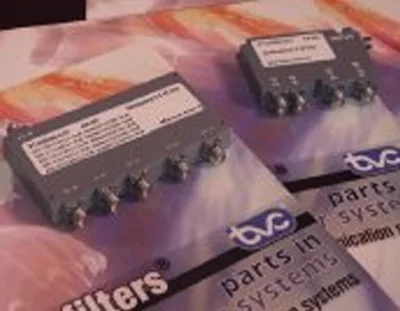

Quadriplexer 2-18 GHz
Pentaplexer 2-18 GHz
Product code: PT-D10000-CCT • PT-D09250-CCT

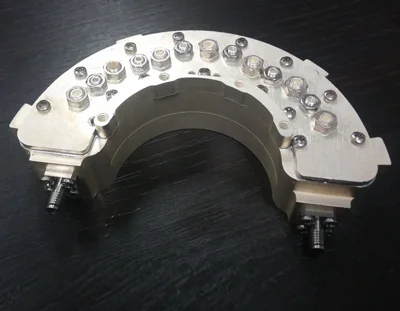

GPS Extended Filter
Pass Band 1624 – 1760 MHz
Product code: MW-F01692-AAT
L-Band Single-cavity Filter
Low tuning frequency 1.05 GHz
High tuning frequency 1.25 GHz
Tuning range over 200 MHz
Product code: MW01.0875-1ASCCT
UHF Bandpass Filter
(BW 33 MHz)
Vibration & Shock Resistant
Power Handling of 40W
TNC Female Connectors
IL ≤ 0.7 dB in Pass-band
For Outdoor Use – IP65
Waveguide band pass filter
14.89 – 15.05 GHz (MW-F14970BFFT)
15.25 – 15.41 GHz (MW-F15330BFFT)
500w CW
Product code: MW-F14970BFFT • MW-F15330BFFT

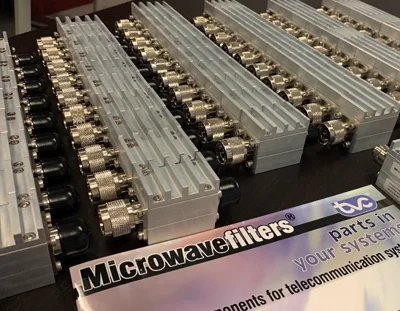

High-Power Lowpass Filter
From DC to 1.09 GHz
High-Power Lowpass Filter
Rejection from 29.6 GHz to 45.6 GHz

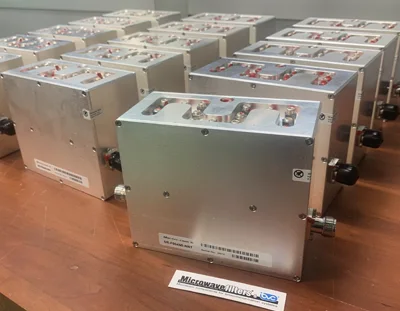

UHF Bandpass Filter 450MHz
(BW 40 MHz)
Vibration & Shock Resistant
Power Handling of 70W
N Female Connectors
IL ≤ 0.7 dB in Passband
Phase Shifter
108-112 MHz Double Synchronous
Product code: MW-P00100-LLLT
For any specific request please send us your requirement at sales@mw-tvc.com
