Double OMT @17.7 – 19.7 GHz with Double low pass
Double OMT @17.7 - 19.7 GHz with Double low pass Double OMT @ 17.7 - 19.7 GHz with Double low Pass
Millimeter-wave diplexers and waveguide components for advanced 5G and high-frequency applications, including E-Band, V-Band and 80 GHz solutions with high isolation and low insertion loss.
Featuring no-tuning designs, improved selectivity and bandwidths up to 71–86 GHz, these compact RF components deliver reliable performance for demanding millimeter-wave systems.
New E-Band focused 5G Diplexer
VRL≥18 dB
Low IL (typical 0.5 dB)
No tuning, very light
New E-Band focused 5G Diplexer
RL≥18 dB
Low IL (typical 0.5 dB)
No tuning, very light
Includes BSFs for improved selectivity

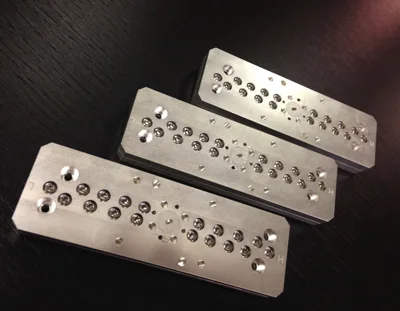

New E-Band Diplexer
RL≥18 dB
Low IL (typical 0.5 dB)
No tuning, very light
Includes BSFs for improved selectivity
New E-Band Diplexer
In Metal Insert (No Tuning)
Isolation≥60 dB, IL≤1.0 dB
With BSFs forimproved
selectivity. Focused on 5G

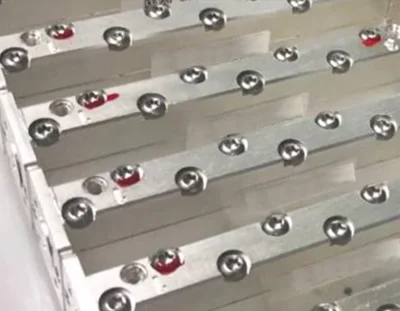

NEW V-Band diplexer
BW 1900 MHz Shifter 4.3 GHz Isolation > 100dB
RL>14 dB, IL<1.6 dB
No tuning
E-Band diplexer
BW 500 MHz Shifter 1.3 GHz Isolation > 60dB
RL>14 dB, IL<1.6 dB
No tuning
Product code: MW-D60500-FFFT
OMT 80 GHz
Bandwidth 71-86 GHz
Isolation > 21 dB, IL < 1.8 dB
Input: WC.1250 circular waveguide
Outputs: WR12 rectangular waveguides
Product code: MW-O78500-FFFT

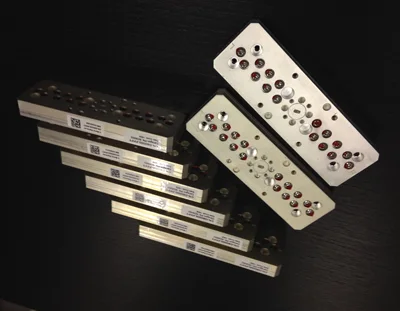

E-Band diplexer
BW 5 GHz, Shifter 10 GHz, Isolation > 60dB
RL>14 dB, IL<1.2 dB
No tuning
Product code: MW-D78500AFFFT

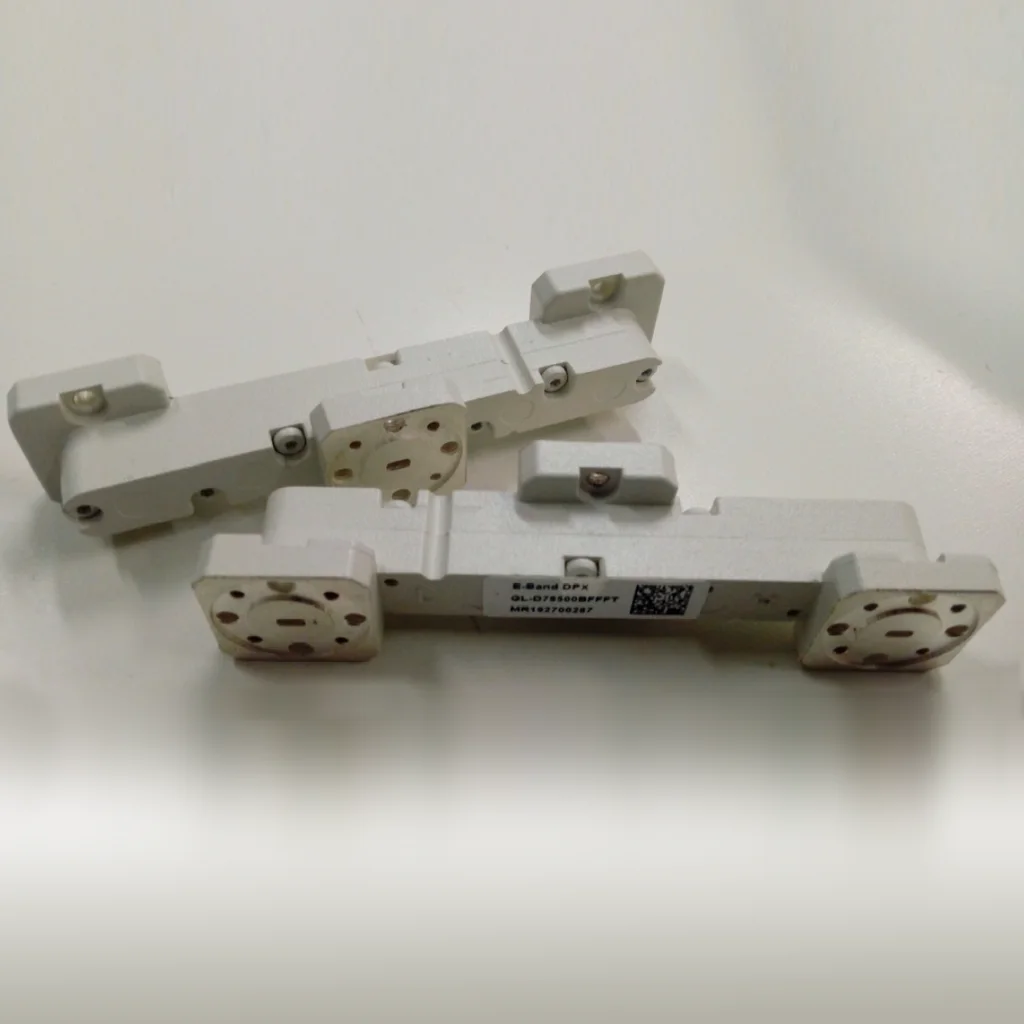

E-Band diplexer
BW 5 GHz, Shifter 10 GHz Isolation > 60dB
RL>15 dB, IL<0.7 dB
No tuning
Product code: MW-D78500BFFFT
For any specific request please send us your requirement at sales@mw-tvc.com
