Broadcasting systems, designed to ensure high selectivity, low insertion loss and reliable RF signal performance. Ideal for professional broadcast applications, they provide efficient frequency management and excellent signal quality in demanding transmission environments.
Band pass filter
390 – 395 MHz
Selectivity > 30 dB at 380MHz and 400 MHz out of band
IL: < 1.5dB ; RL : >16dB
2.38 GHz Bandpass Filter
IL < 11 dB
Attenuation > 30 dB @ 23400 MHz

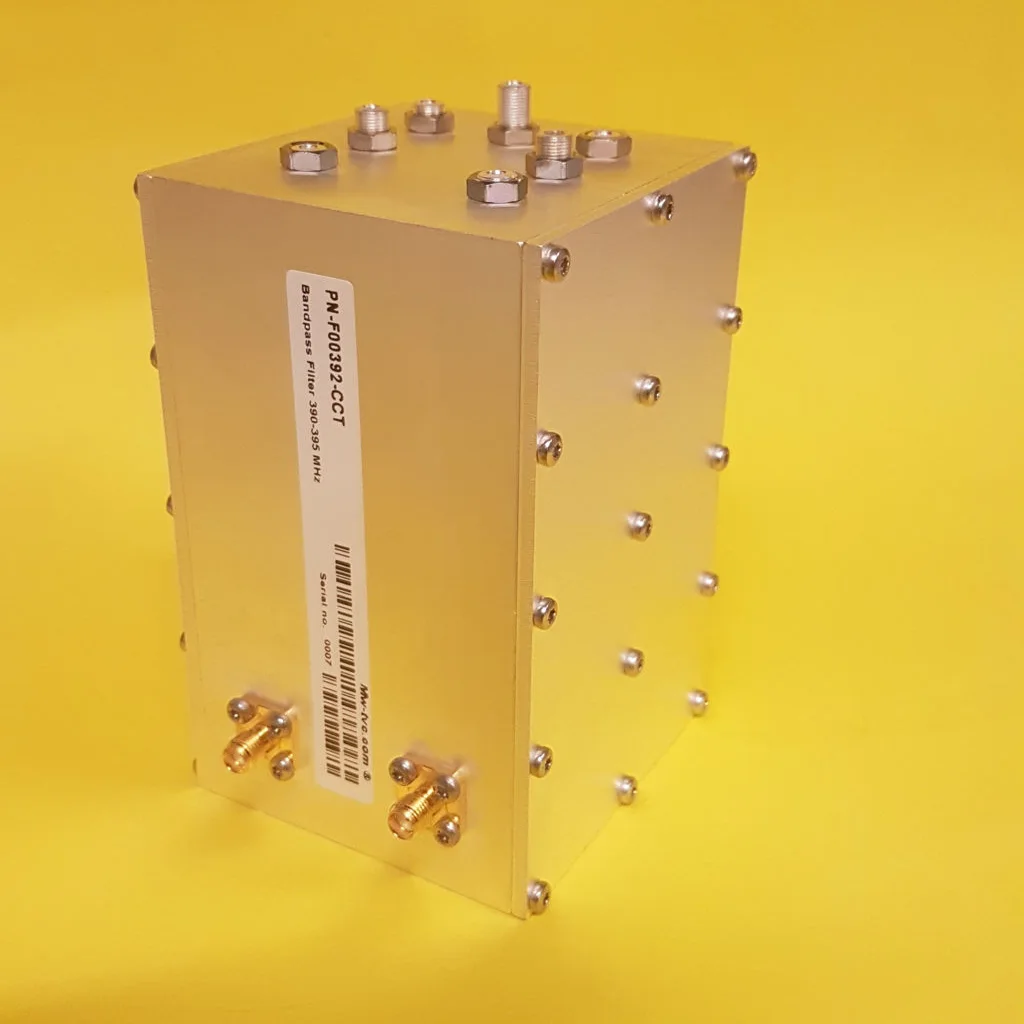

Bandpass Filter
390-395 MHz
Bandwidth 5 MHz
Product code: MW-F00392-CC
Bandpass Filter
2180-2310 MHZ
for telemetry
Product code: MW-F02300-NPT
Bandpass Filter
900-1750 MHZ
Product code: MW-F01325-CCT

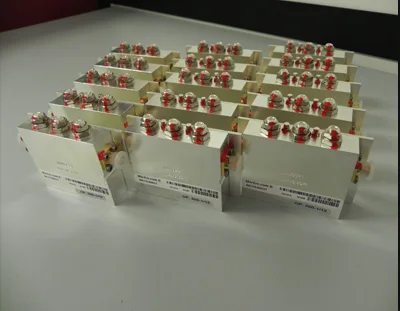

Bandpass Filter
1500-2500 MHz
Product code: MW-F02000-3ASCCT
Bandpass Filter
Narrow Band (10 MHz)& Low Loss (< 1 dB)
Tunable from 2.4 to 2.7 GHz.
Product code: MW02.65-6ASCCT
Wide Bandpass filter + Low pass filter
2 to 3 GHz
Both an indoor and an outdoor version are available
Product code: MW01,27-4ASNNNT
UHF Filter
Tunable in 400-850 MHz range
Product code: MW-F00625-CCT

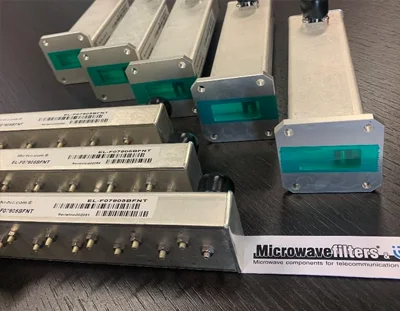

8 GHz Bandpass Filters
5 Resonators
BW=10 MHz
IL < 3.6 dB

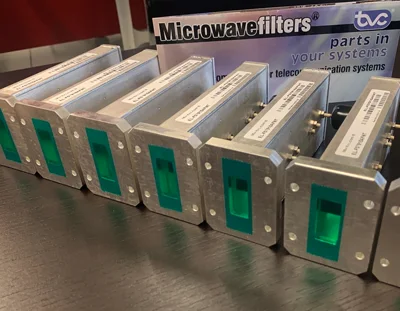

8 GHz Bandpass Filters
8 GHz Bandpass Filters
3 Resonators
BW=10 MHz
IL < 1.5 dB
For any specific request please send us your requirement at sales@mw-tvc.com
